IPPC-1501T 15" Industrial Touch Panel PC 1 Extended Slot Support I3 I5 I7 Desktop CPU

Brand Name : Yanyue

Model Number : IPPC-1501T

Certification : CE, FCC

Place of Origin : Guangdong, China

MOQ : Negotiation

Price : Negotiation

Payment Terms : T/T

Supply Ability : motherboard 100000 pieces / month ; IPC 5000 sets / month

Delivery Time : According to Quantity

Packaging Details : Wooden Box

Name : Industrial Touch Panel PC

Adapt motherboard : MINI-ITX motherboard

Touch screen : 5-wire resistance screen

CPU/GPU : Intel i3 2120

Memory : 4G DDR3

Hard disk : 128G MSATA

Contact Now

IPPC-1501T 15" touch industrial Panel PC, 1 extended slot, support i3/i5/i7 desktop CPU

Features:

■ Aluminum alloy wire drawing pane

■ Waterproof grade IP65 for panel

■ Supporting High Performance Desktop I3/I5/I7 Series CPUs

■ A PCI or PCIE extension

■ Standardized Dual Network 4 Series 6 USB

■ Supporting simultaneous installation of mSATA solid state hard disk and 2.5 inch mechanical/solid state hard disk

■ Various installation options

■ Resistance Touch Screen, OEM Capacitance Screen

Specification parameters Optional configuration
Front panel Aluminum alloy panel, the nature of wire drawing oxidation Optional black or other colors, optional sandblasting treatment
Back chassis 1.2mm Steel plate, Silver Optional industrial black or other colours
Adapt motherboard MINI-ITX motherboard All low power ITX motherboards of Yanyue are optional
LCD screen 15"TFT, LED backlight; Resolution 1024*768; Lattice: 0.297*0.297; Maximum color: 16.2M; Brightness: 300cd/; Contrast: 1500:1; Response speed: 35ms; MTBF: 50,000h visual angle: (+85 -85) (+85 -85);
Touch screen 5-wire resistance screen Customizable Capacitance Screen
CPU/GPU Intel i3 2120 Supporting 3, 4, 6 and 7 generations of desktop CPUs
Memory 4G DDR3 Optional 2G/8G/16G DDR3 notebook memory
Hard disk 128G MSATA Optional 32G/64G/256G Msata solid state hard disk; 2.5" 500G/1T/2T mechanical hard disk and 512G/1T solid state hard disk
Interface AC input; 6USB (2 USB3.0); 2RJ45 (gigabit); 2VGA; HDMI, audio output; MIC input; 1 antenna aperture; 4COM; Customizable 8USB or 10COM or 1LPT
Extension 1 PCI Extension 4 Generations, 6 Generations, 7 Generations Support 1 PCIEx16 Extension
Size 415mm(length)* 313mm(width)* 102mm(thickness) Net/Gross Weight 6/7KG
Industrial Power Supply 200W Industrial 1U Power Supply 　
Installation mode Embedded screw installation; Embedded hook installation; VISA wall mounting installation
Work and Environment
Working temperature 0～60℃ Storage temperature -40～75℃ Environmental humidity 0~90% air humidity, no condensation
IP Level Panel IP65 Vibration 5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration
EMC GB9254-2008 class A Shock 10g acceleration, 11ms duration

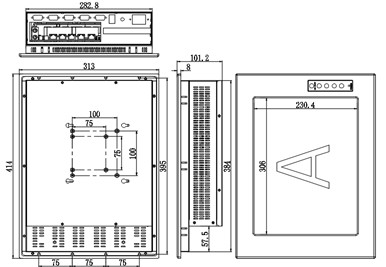

Installation Dimension Diagram 　IPPC-1501T 15" Industrial Touch Panel PC 1 Extended Slot Support I3 I5 I7 Desktop CPU

IPPC-1501T 15" Industrial Touch Panel PC 1 Extended Slot Support I3 I5 I7 Desktop CPUIPPC-1501T 15" Industrial Touch Panel PC 1 Extended Slot Support I3 I5 I7 Desktop CPU
